Image Sensor/Re-con - WS-12S
A high-speed, high-precision, fully automated tape frame-to-frame IC sorter. Designed for high cleanliness environments, it retrieves grains from films based on wafer mapping data and accurately sorts them into the correct frames.

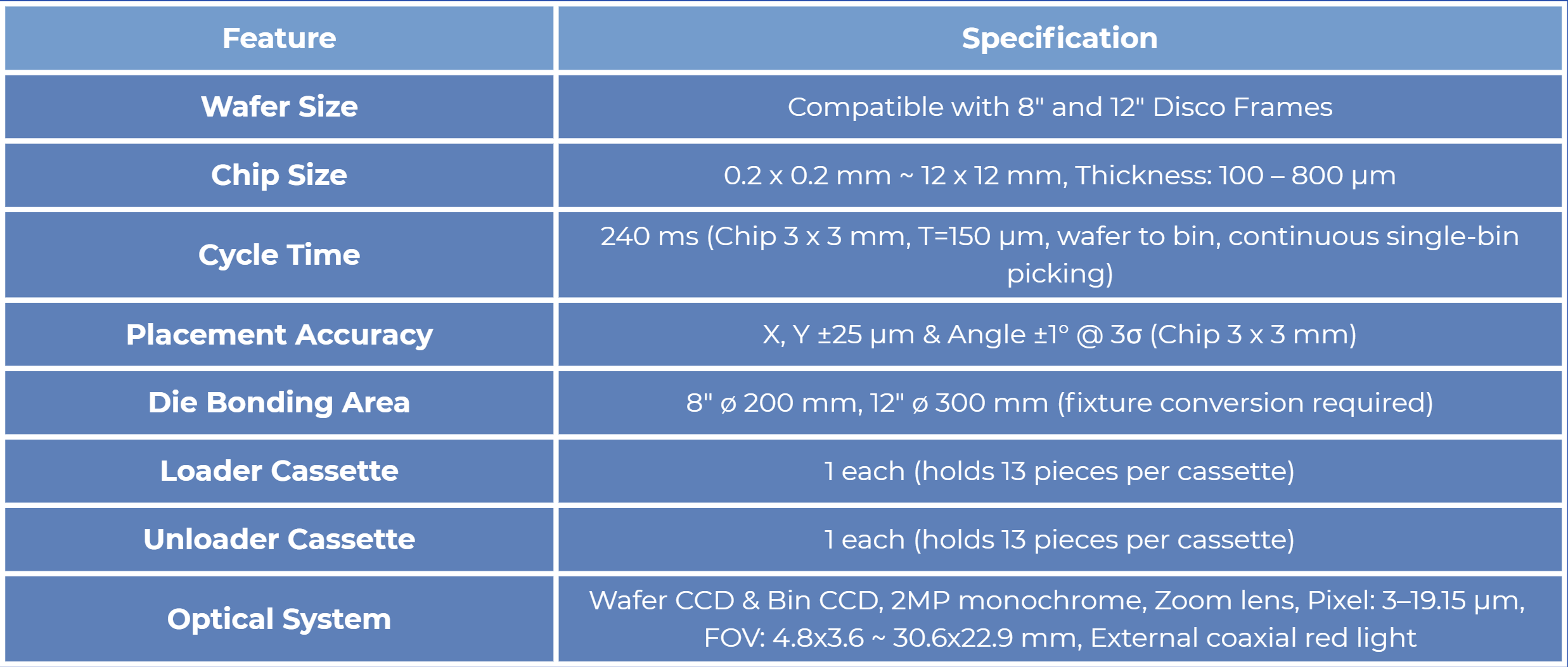

Key Specifications:
A high-speed, high-precision, fully automated tape frame-to-frame IC sorter. Designed for high cleanliness environments, it retrieves grains from films based on wafer mapping data and accurately sorts them into the correct frames.
Key Specifications:
- Vertical frame design minimises dust contamination.
- Shortest pick-and-place distance for stable, high-speed operation.
- Strict map-based picking rules for maximum sorting accuracy.
- Program-controlled sensitivity for failed picking sensors.
- Special software functions: hole filling & bin connection.
- Flexible input/output: Supports 8″ or 12″ kits, sortable between frames of same or different sizes.
- Sorting capacity: 1 bin (independent cassette) up to 13 bins (single frame).
